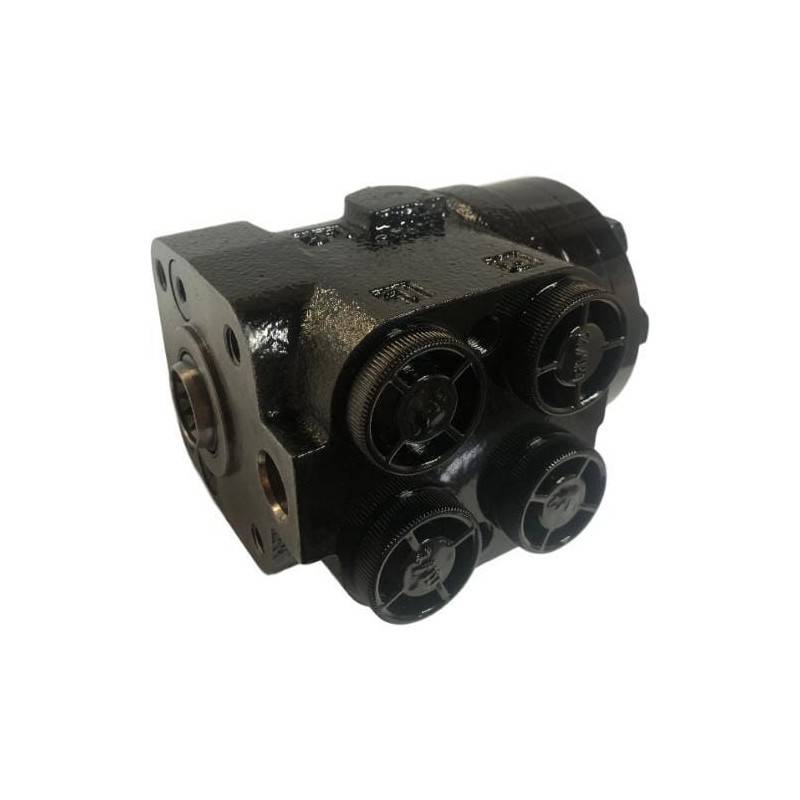

ΕΓΚΕΦΑΛΟΣ ΤΙΜΟΝΙ SOSPC100NONKR Orbital steering unit 100cc Kramp

Product details:

• Design: open-centre non reaction (SOSPB with integrated valves)
• “O” stands for “open system” In the neutral position, oil flows from connection “P” (pump) to connection “T” (tank)
• “N” stands for “non reaction”. Forces acting on the wheels from outside are not transmitted to the steering gear.

Technical parameters:

• Displacement: 100cm3/obr
• Type: ON
• Pressure relief valve: Yes, 140bar
• Shock valve: Tak, 200bar
• Max T connection pressure: 25bar
• Max. working pressure: 175bar
• Load Sensing type: Not available
• Min required flow: 10l/min
• Port A: 1/2″ BSP
• L1: 136mm
• Material: cast iron
