Product details:

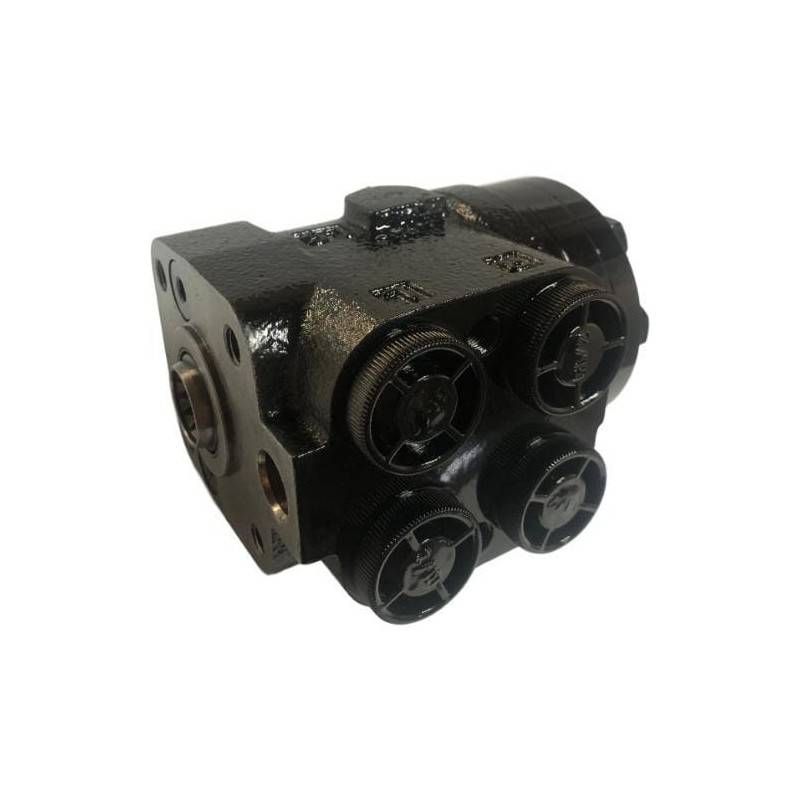

- Design: open-centre non reaction (SOSPB with integrated valves)
- “O” stands for “open system” In the neutral position, oil flows from connection “P” (pump) to connection “T” (tank)
- “N” stands for “non reaction”. Forces acting on the wheels from outside are not transmitted to the steering gear.
Technical parameters:
- Displacement: 50cm3/obr
- Type: ON
- Pressure relief valve: Yes, 140bar
- Shock valve: Tak, 200bar
- Max T connection pressure: 25bar
- Max. working pressure: 175bar
- Load Sensing type: Not available
- Min required flow: 5l/min
- Port A: 1/2″ BSP
- L1: 130mm
- Material: cast iron
